ACCESSARY PARTS

CAM for Cylinder
Internal/External Plug Pin Ring, US26D, US3, 42mm Dia, 5.7mm H

 CAM for Mortise Cylinder    Pin    Ring

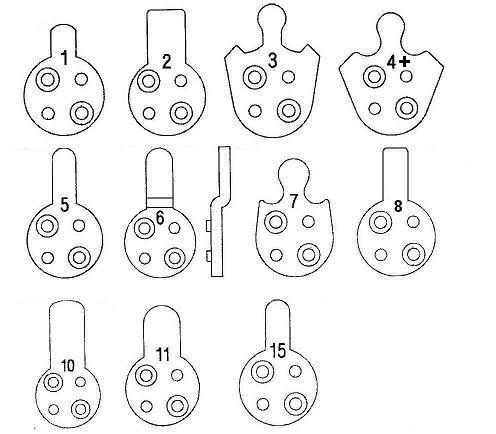

  CAM for Cylinder

CAM001: Cam #1 for mortise Cylinder Adams Rite© Type
CAM002: Cam #2 for mortise Cylinder Yale© Standard Type
CAM003: Cam #3 for mortise Cylinder Russwin© Clover Type
CAM004: Cam #4 for mortise Cylinder Falcon© Type
CAM005: Cam #5 for mortise Cylinder Lockwood© Type
CAM006: Cam #6 for mortise Cylinder Segal© Type
CAM007: Cam #7 for mortise Cylinder Schlage© Type
CAM008: Cam #8 for mortise Cylinder Sargent© Type
CAM010: Cam #10 for mortise Cylinder Corbin© Jumbo Type
CAM011: Cam #11 for mortise Cylinder Baldwin© Type
CAM015: Cam #15 for mortise Cylinder Vingcard© Type

Back to top

Pin, Internal / External

For Internal Pin
PIN001: Internal Plug Pin, Size 1 L=5.25mm
PIN002: Internal Plug Pin, Size 2 L=5.75mm
PIN003: Internal Plug Pin, Size 3 L=6.25mm
PIN004: Internal Plug Pin, Size 4 L=6.75mm
PIN005: Internal Plug Pin, Size 5 L=7.25mm

For External Pin
PIN00A: External Plug Pin, Size A L=5.15mm
PIN00B: External Plug Pin, Size B L=5.65mm
PIN00C: External Plug Pin, Size C L=6.15mm
PIN00D: External Plug Pin, Size D L=6.65mm

Back to top

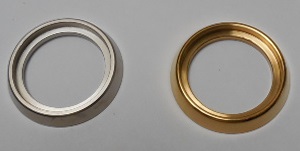

Spacer Ring,

For Spacer Ring
RING0B: US3 Brass color, 42mm Dia, 5.7mm H.
RING0S: US26D Chrome color, 42mm Dia, 5.7mm H.
Back to top
